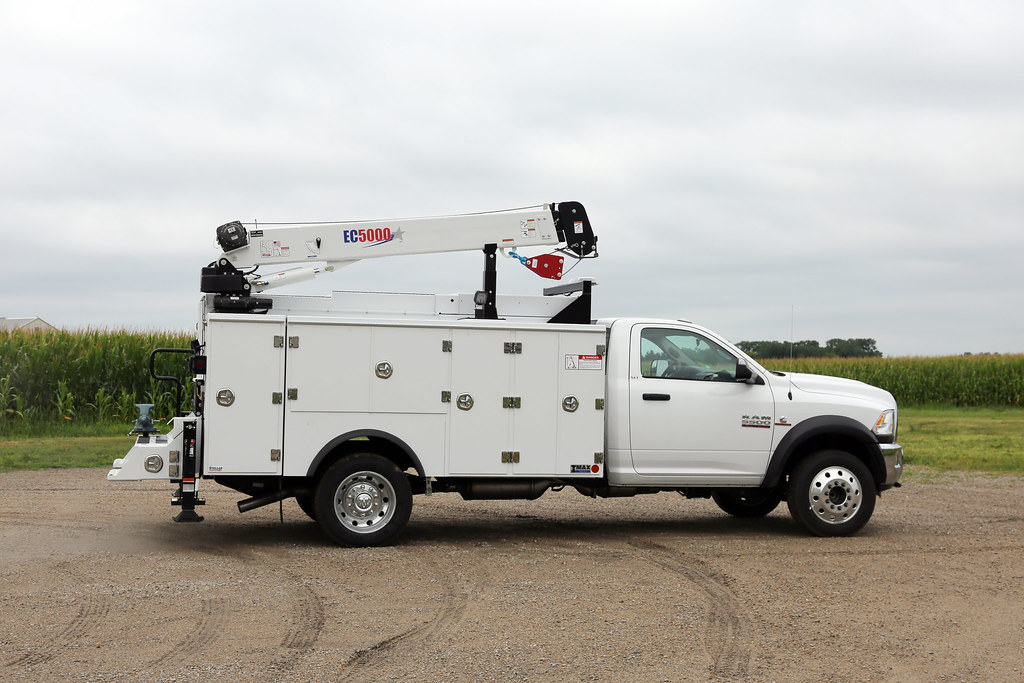

Stellar Industries TMAX 30K Service Body

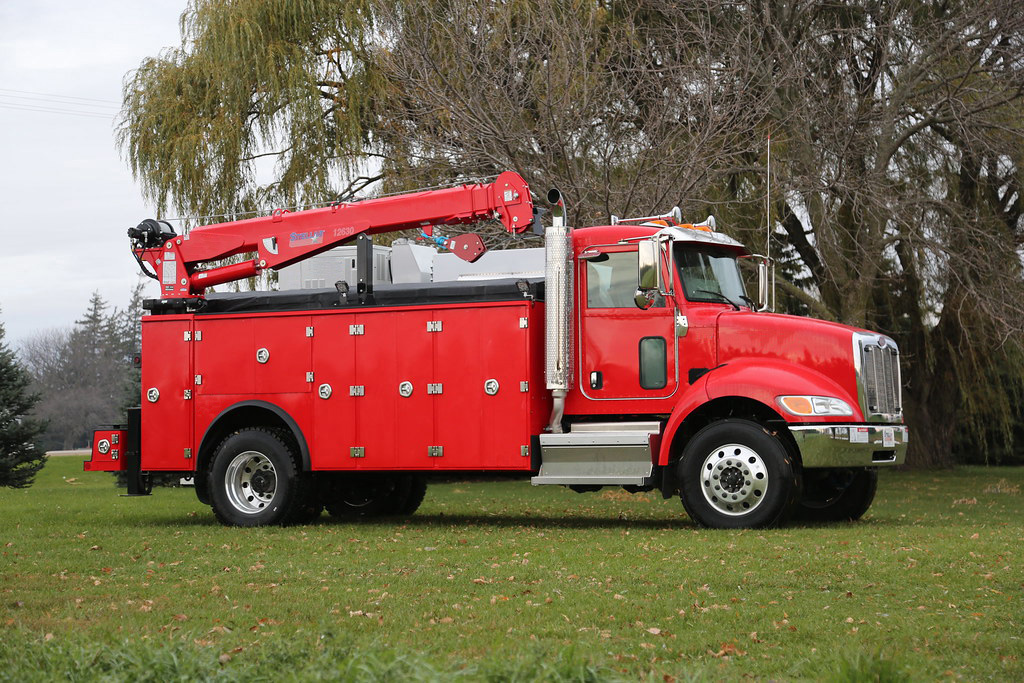

Stellar Industries TMAX 30K Service Body

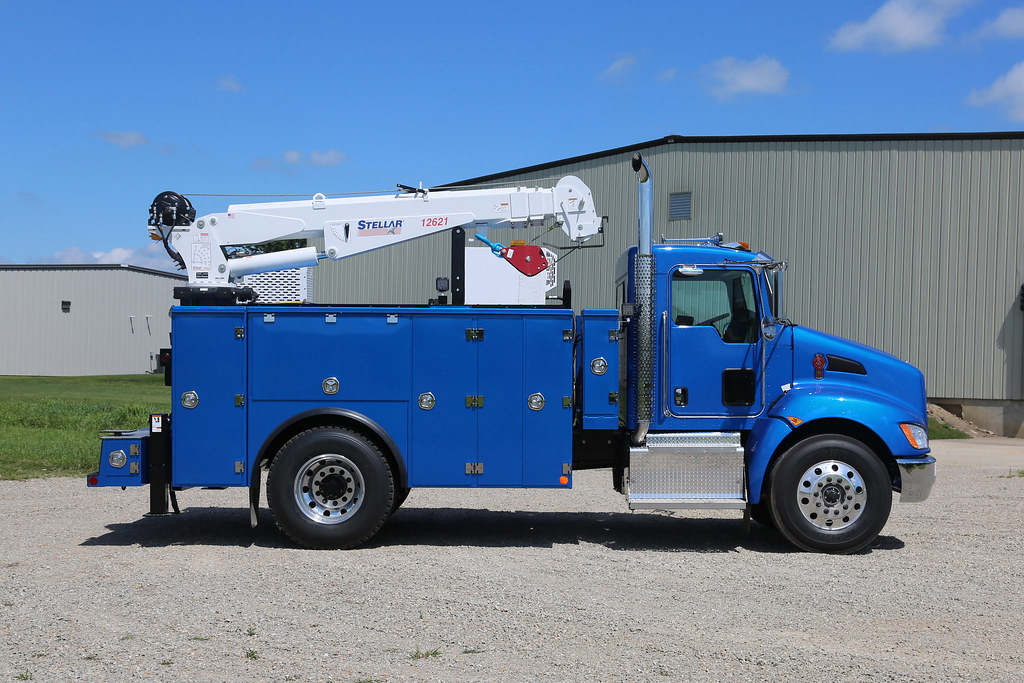

Stellar Industries TMAX 30K Service Body

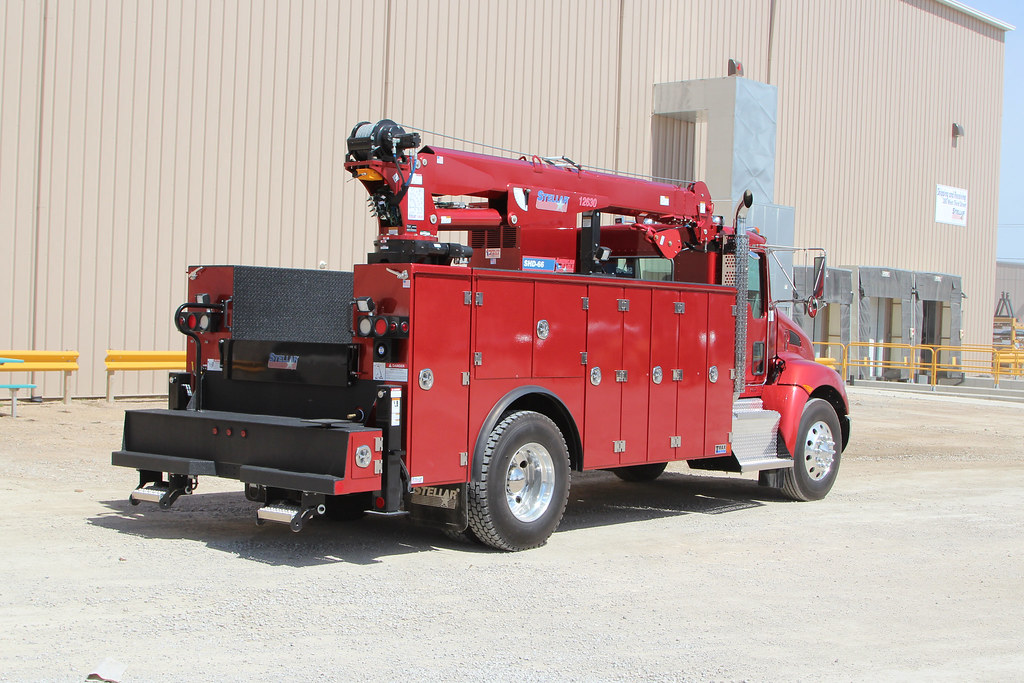

Stellar Industries TMAX 30K Service Body

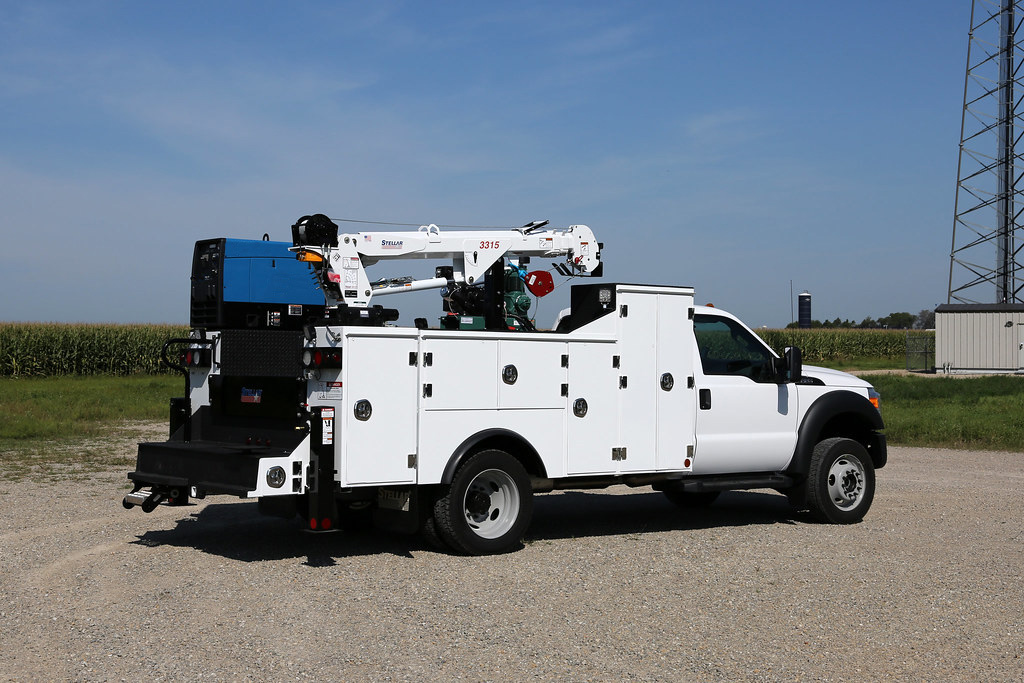

Stellar Industries TMAX 30K Service Body

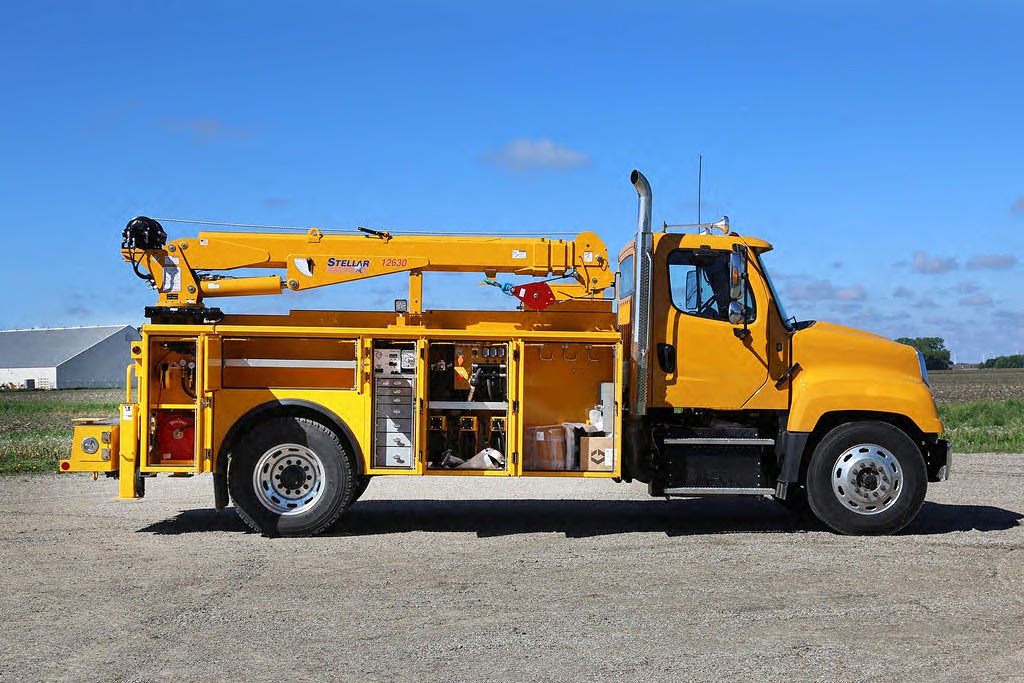

Stellar Industries TMAX 30K Service Body

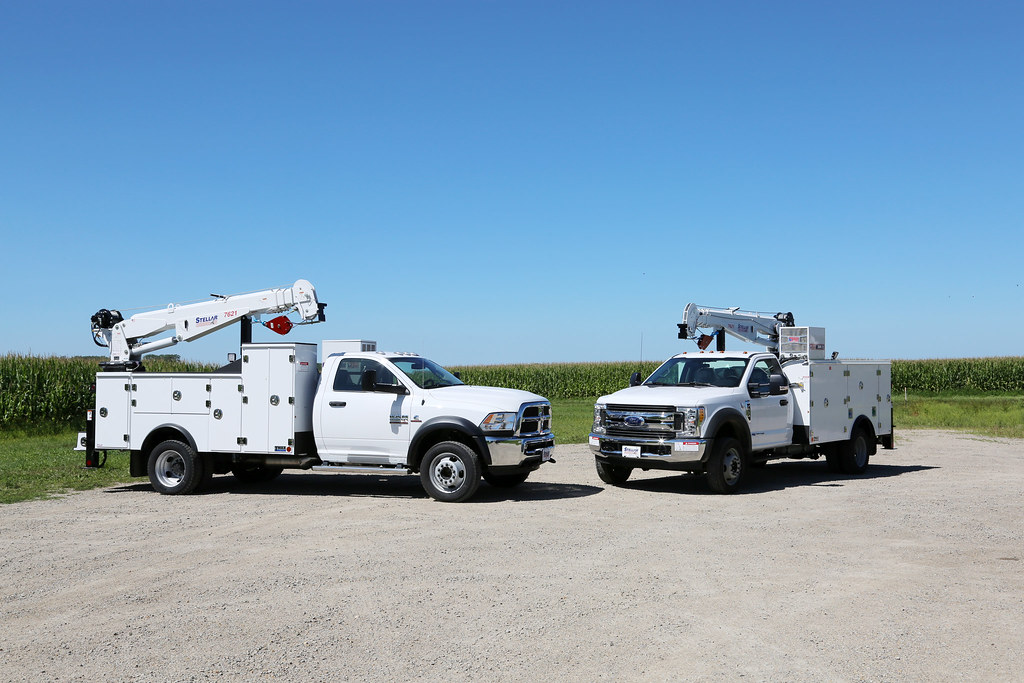

Stellar Industries TMAX 30K Service Body

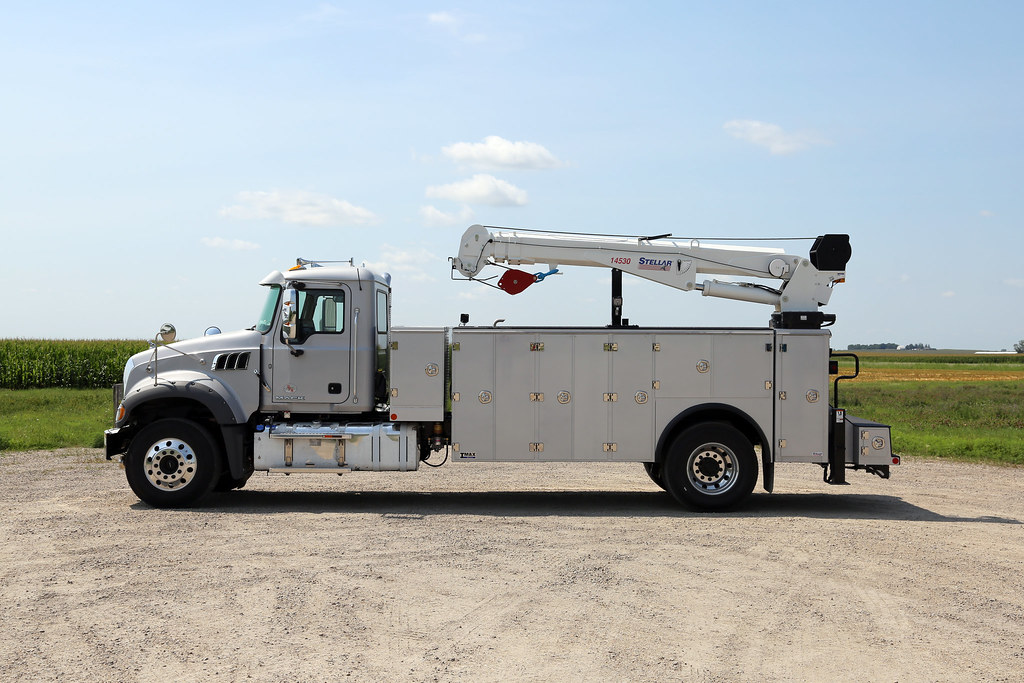

Stellar Industries TMAX 30K Service Body

Stellar Industries TMAX 30K Service Body

Stellar Industries TMAX 30K Service Body

Stellar Industries TMAX 30K Service Body

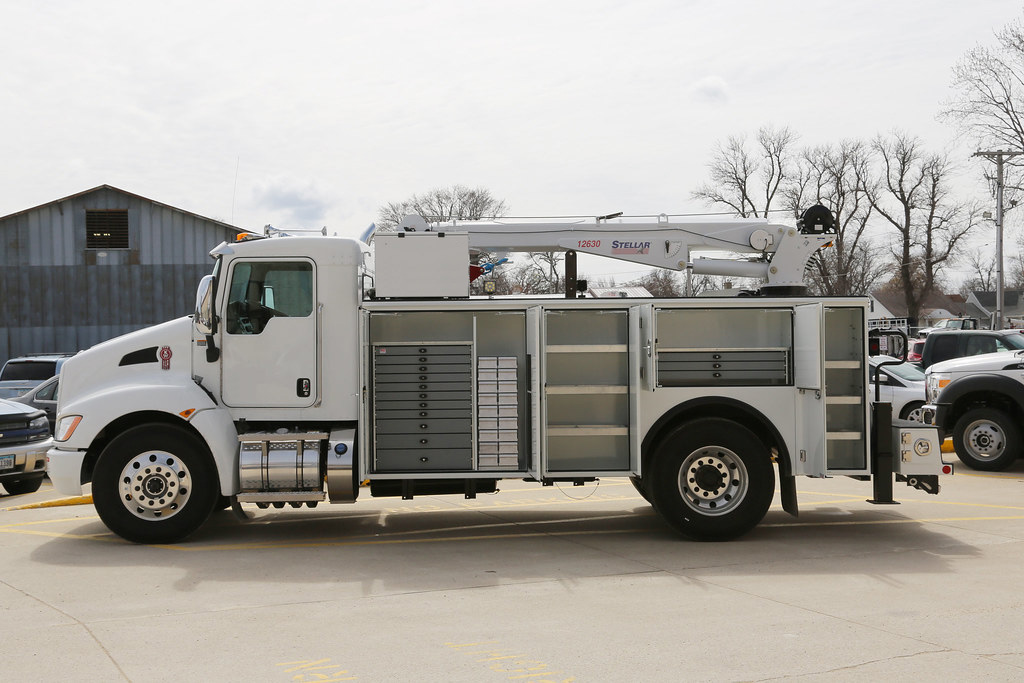

TMAX 30K Service Body

Stellar Industries
Mechanic Trucks & Cranes TMAX Series Service Bodies

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

The TMAX™ 30K Service Body is designed to serve municipal markets, light equipment dealers and others needing a service crane that lifts 5,000 pounds or less. The Stellar® TMAX™ 30K weighs nearly 1000-pounds less than its heavy-duty counterpart, the TMAX™ 1.

(Optional 9-foot body version available)

+ Expand All
- Close All

Compatible Crane Models

Model	Crane Rating	Max. Reach	Max. Capacity
EC3200	11,500 ft-lb	15' (4.57 m)	3,200 lbs (1,450 kg)
EC4000	16,000 ft-lb	20' (6.10 m)	4,000 lbs (1,814 kg)

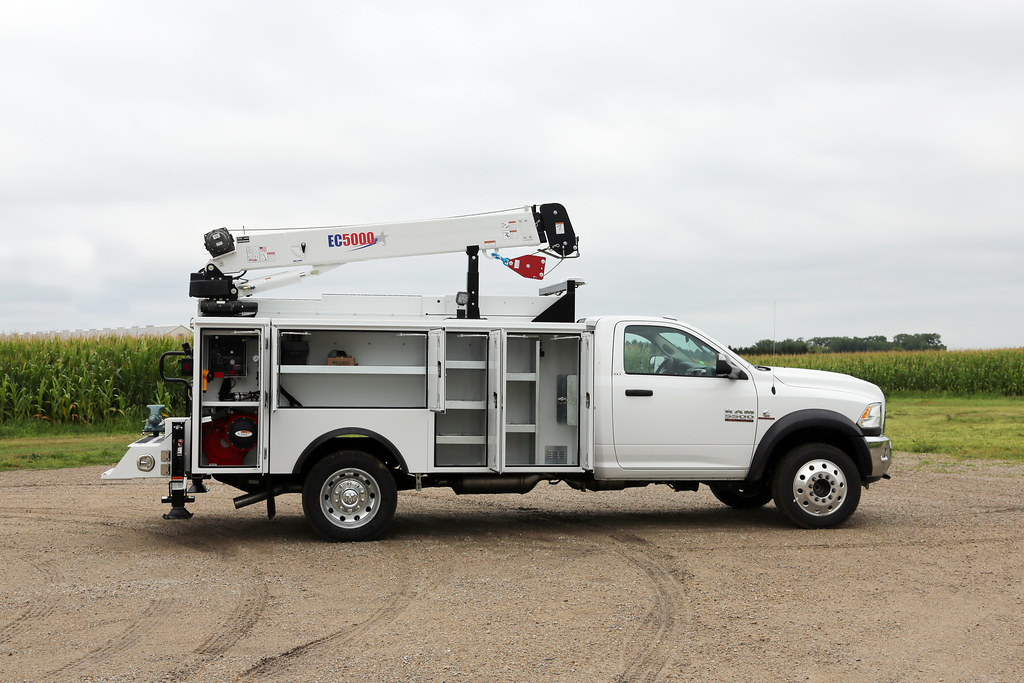

EC5000	25,000 ft-lb	20' (6.10 m)	5,000 lbs (2,268 kg)
3315	11,500 ft-lb	15’ (4.57 m)	3,200 lbs (1,450 kg)
4421	16,000 ft-lb	21’ (6.40 m)	4,000 lbs (1,815 kg)
5521	29,500 ft-lb	21’ (6.40 m)	5,000 lbs (2,265 kg)
6521	35,000 ft-lb	21’ (6.40 m)	6,000 lbs (2,722 kg)

Net Weight: 2,710 lbs (1,229 kg)
Floor Width: (127 cm)
Body Height: 44” (112cm) w/60" (152 cm) right front raised compartment
Cab to Axle: 84” (213 cm)
Applicable Chassis: 14,000 – 19,500 GVWR
Body Width: 94” (239 cm)

Documents

TMAX™ 30K Service Body Brochure
