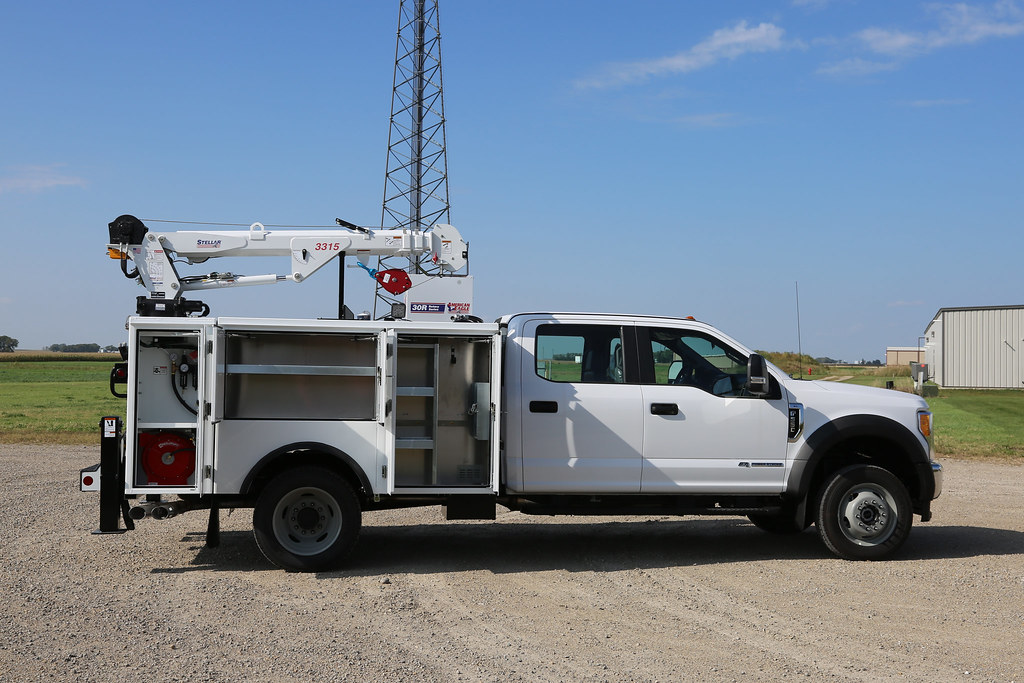

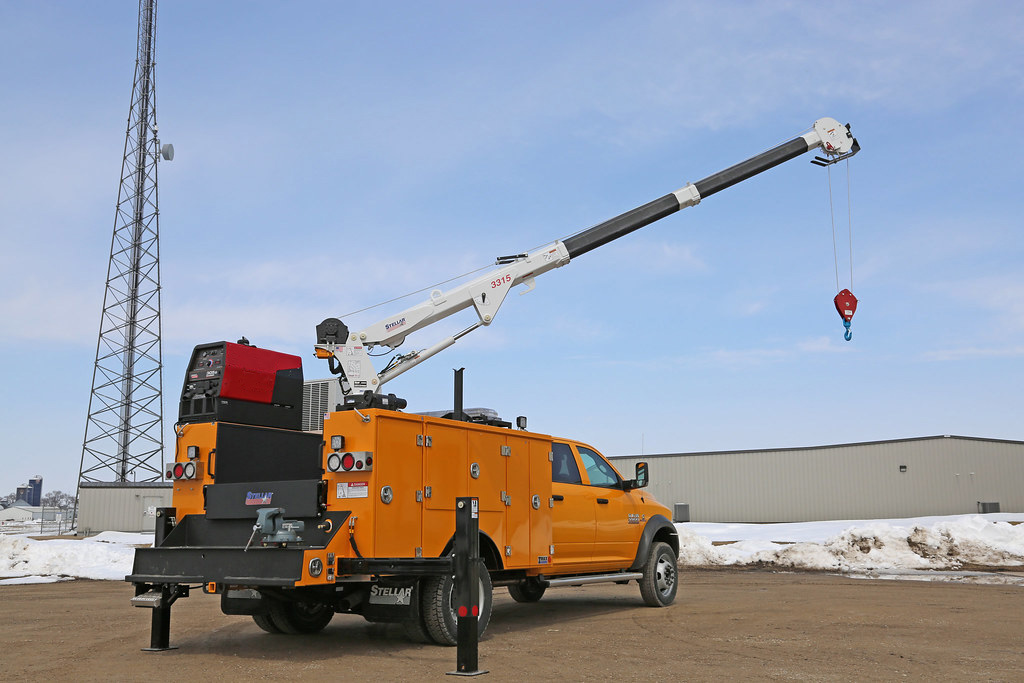

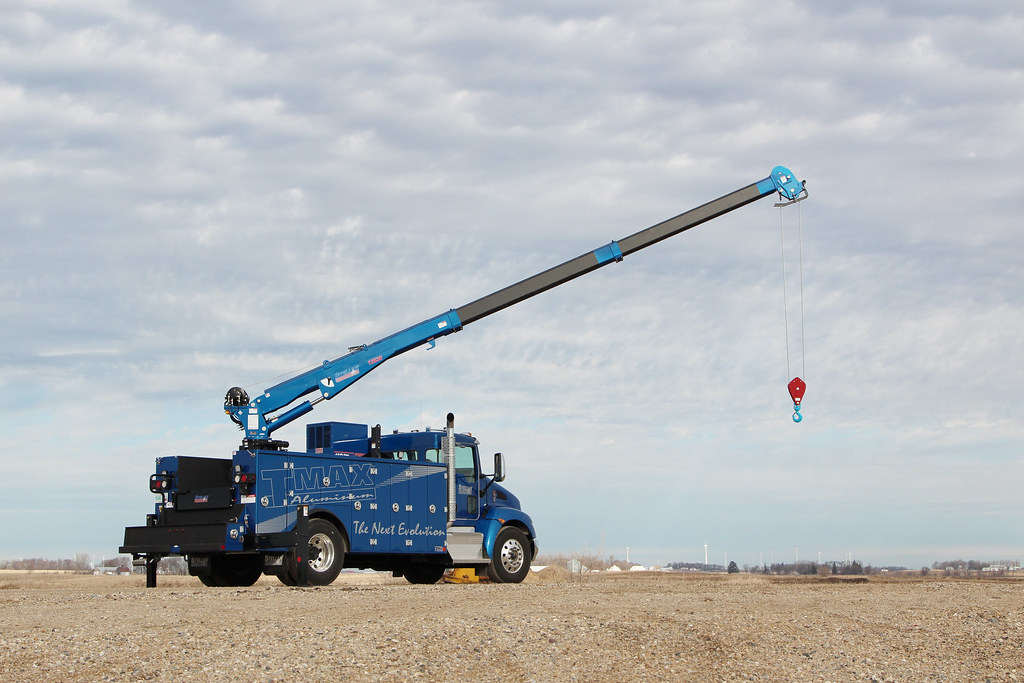

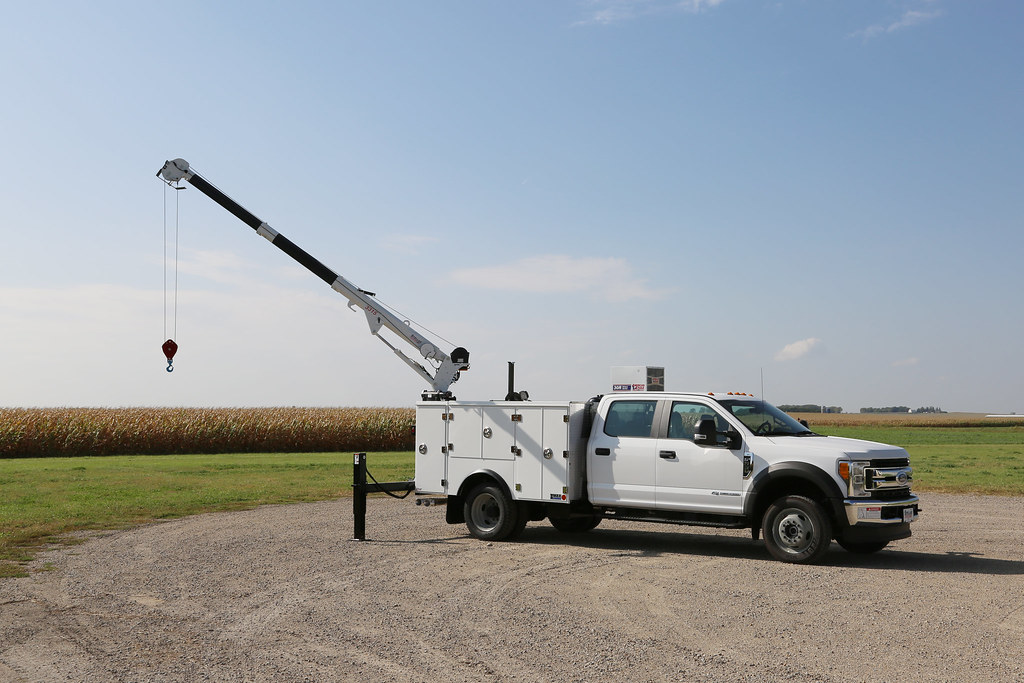

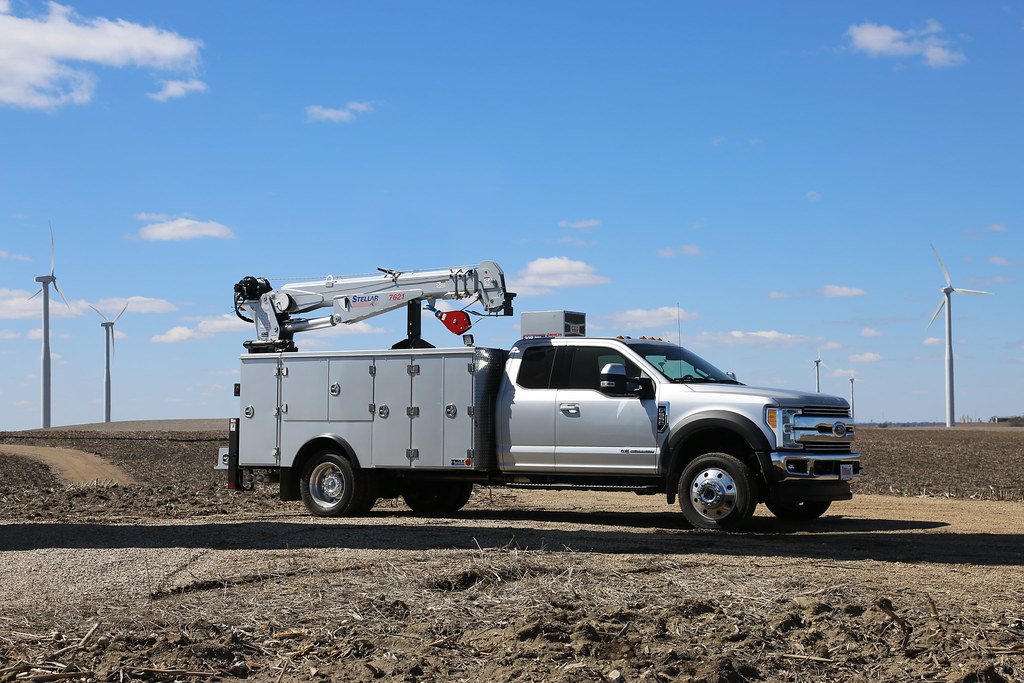

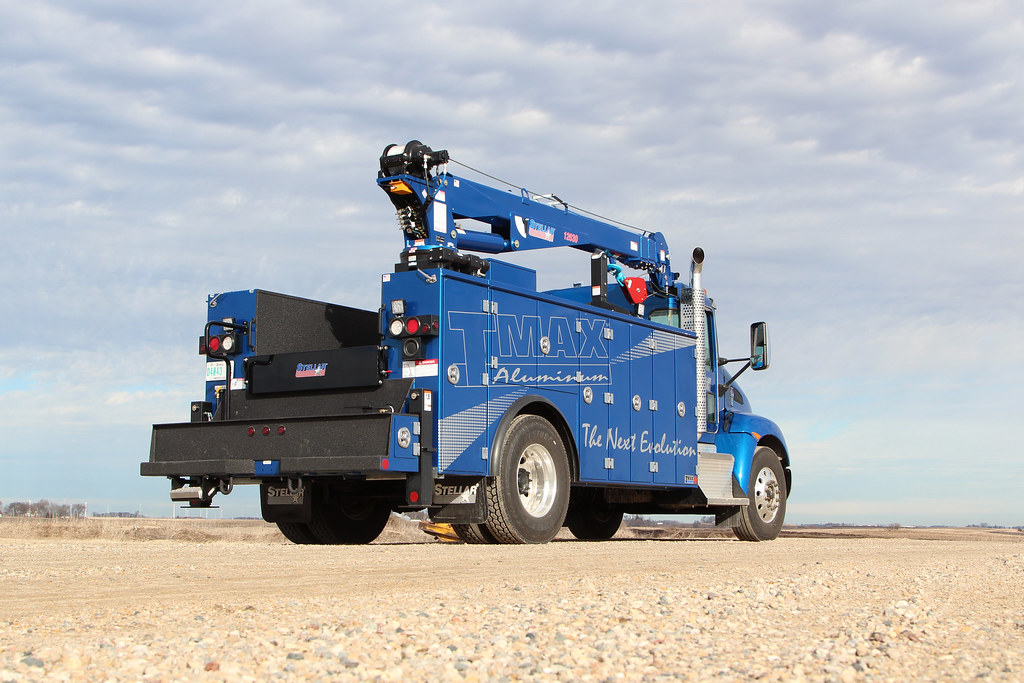

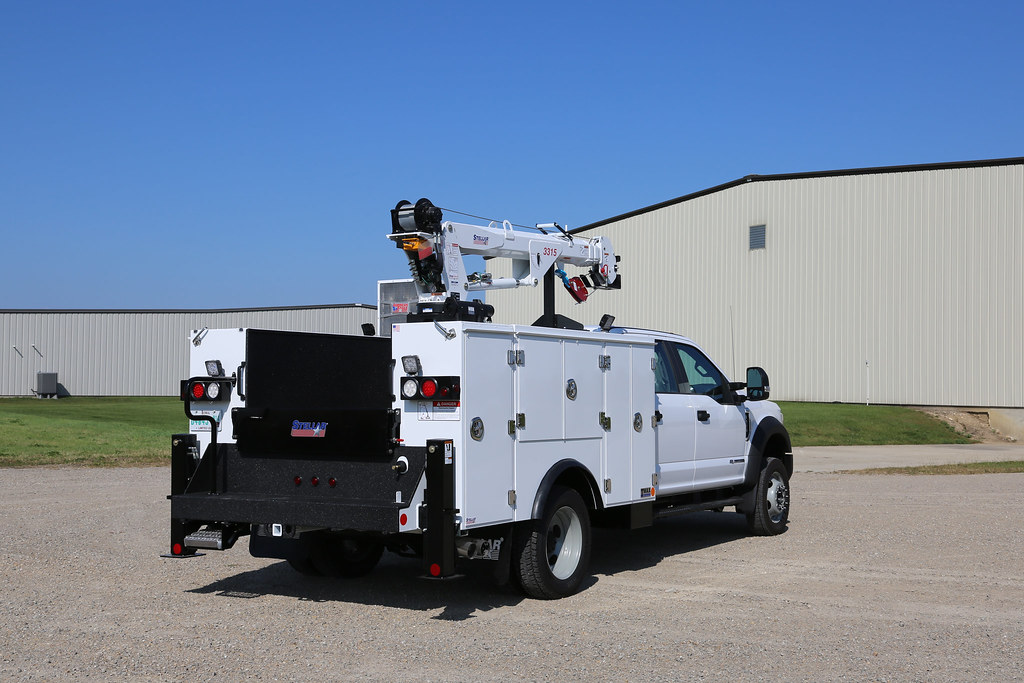

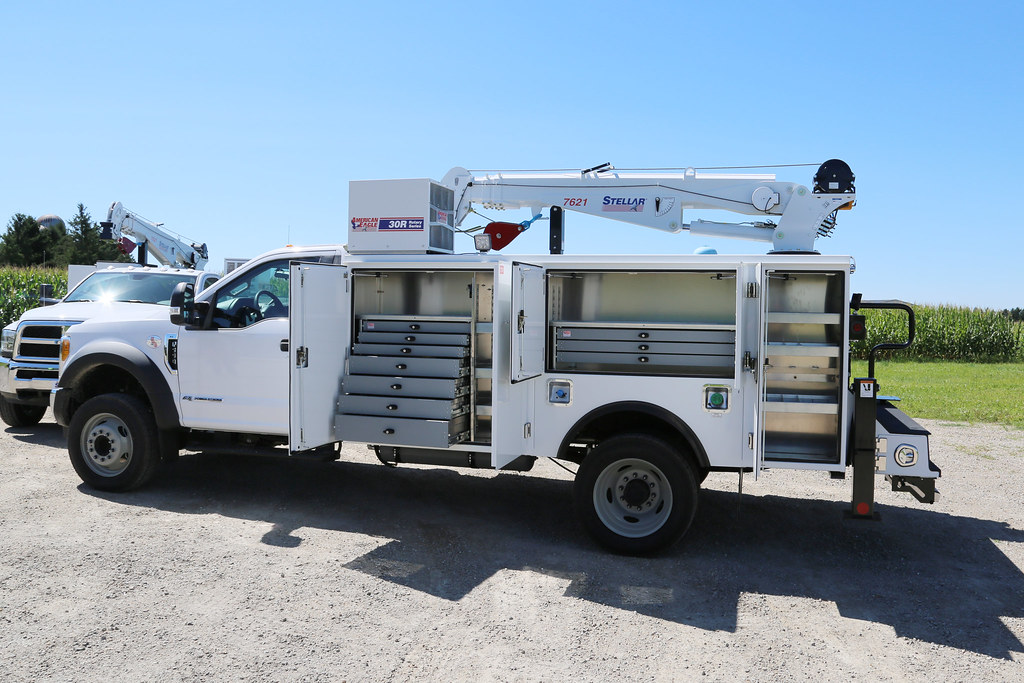

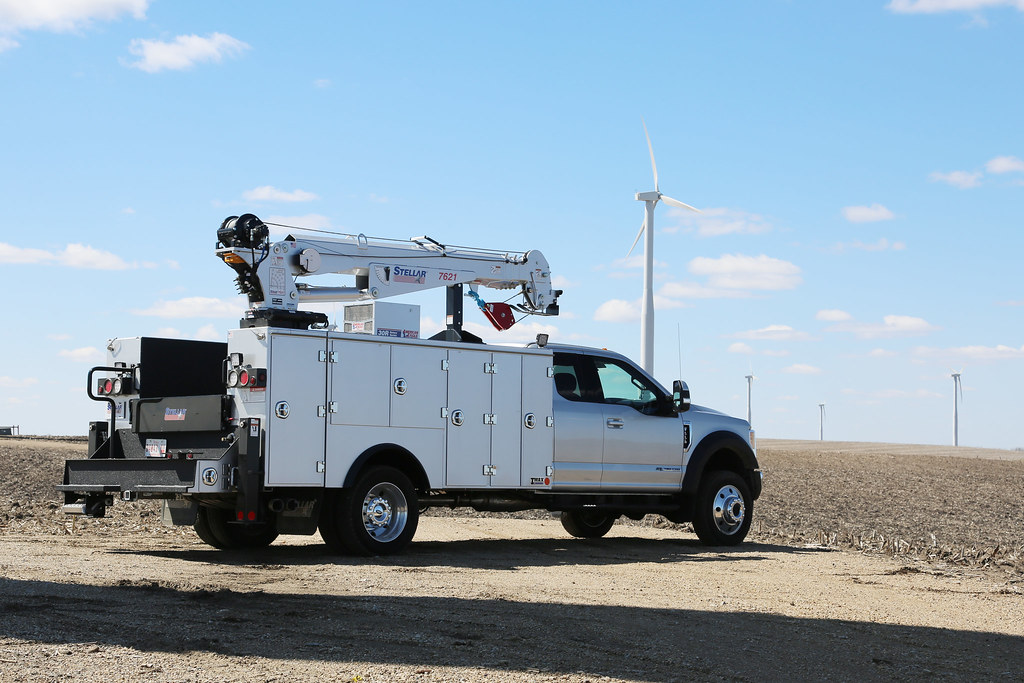

TMAX 30K Aluminum Service Body

Stellar Industries
TMAX Aluminum Service Bodies

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

The TMAX™ 30K Aluminum Service Body is designed to serve municipal markets, contractors and others needing a service crane that lifts 6,000 pounds (35,000 ft-lb) or less. The Stellar® TMAX™ 30K weighs nearly 500-pounds less than its heavy-duty counterpart, the TMAX™ 1.

(Optional 9-foot body version available)

+ Expand All
- Close All

Compatible Crane Models

Model	Crane Rating	Max. Reach	Max. Capacity
EC3200	11,500 ft-lb	15' (4.57 m)	3200 lbs (1450 kg)
EC4000	16,000 ft-lb	20' (6.10 m)	4000 lbs (1,814 kg)
EC5000	25,000 ft-lb	20' (6.10 m)	5000 lbs (2,268 kg)
3315	11,500 ft-lb	15’ (4.57 m)	3,200 lbs (1,450 kg)
4421	16,000 ft-lb	21’ (6.40 m)	4,000 lbs (1,815 kg)
5521	29,500 ft-lb	21’ (6.40 m)	5,000 lbs (2,265 kg)
6521	35,000 ft-lb	21’ (6.40 m)	6,000 lbs (2,722 kg)

Cab to Axle: 84” (213 cm)
Floor Width: 50” (127 cm)
Applicable Chassis: 14,000 – 19,500 GVWR
Body Length: 133” (338 cm)
Net Weight (52" Height): 2,400 lbs (1,088 kg)
Net Weight (44" Height): 2,280 lbs (1,034 kg)
Body Height: 44" (112 cm) or 52” (132 cm)

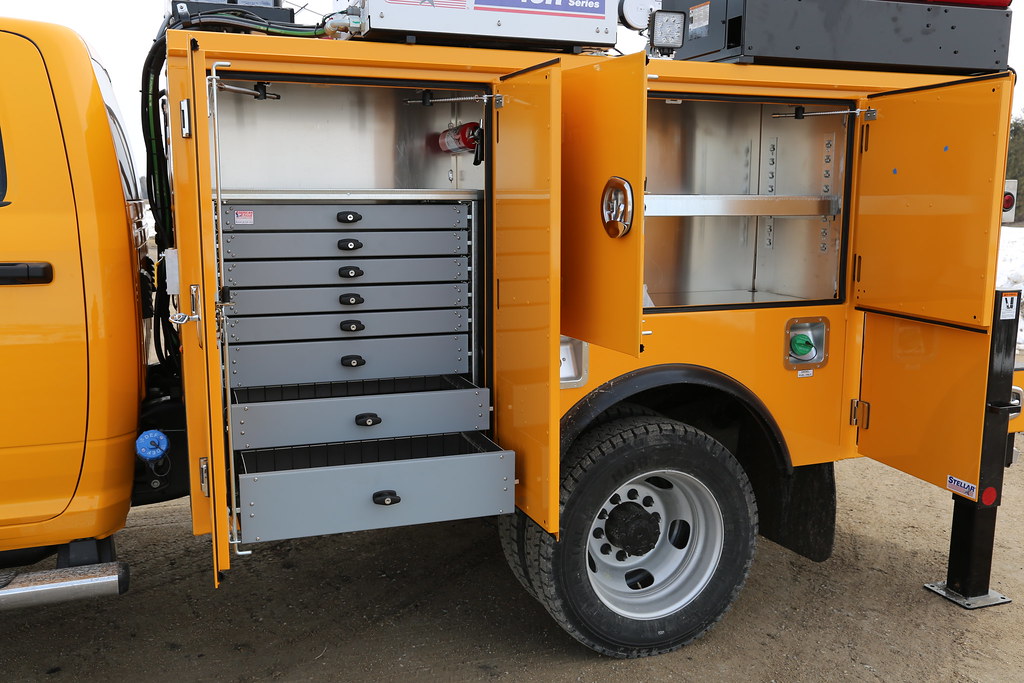

Compartment Depth: 22” (55.88 cm)

Documents

TMAX™ 30K Service Body Brochure
