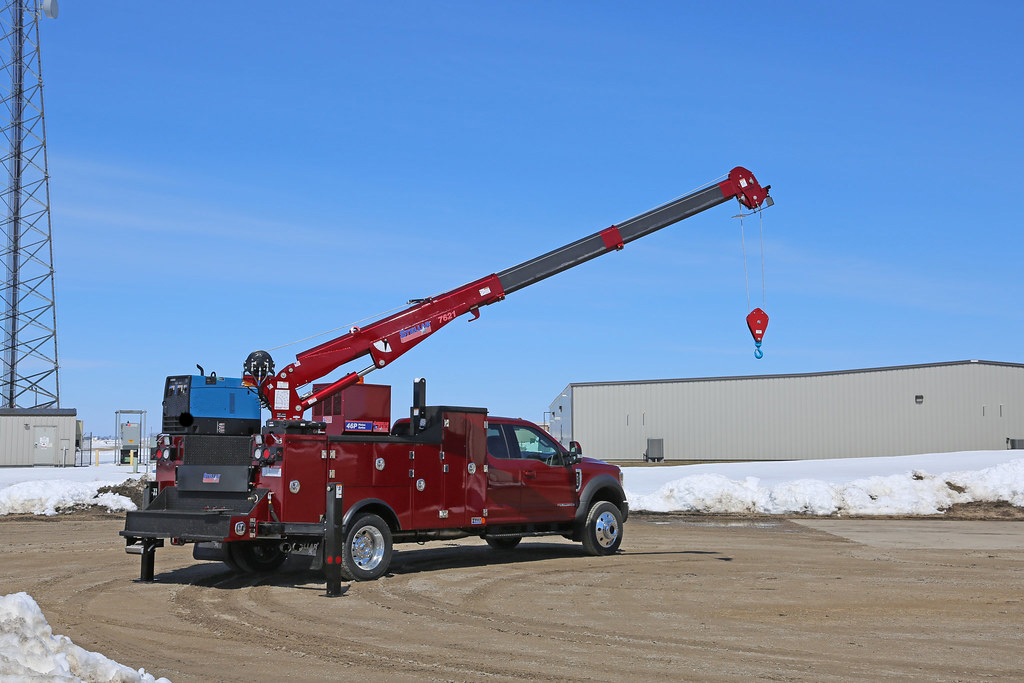

Stellar Industries 76 Series Telescopic Service Cranes

Stellar Industries 76 Series Telescopic Service Cranes

76 Series Telescopic Service Cranes

Stellar Industries
Heavy-Duty Cranes

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Stellar cranes bring more value-added features to the market than any competitive crane in its class. The design parameters were developed using months of input from users throughout North America. Features were designed to allow the user to do their job faster and more efficiently than with any other competitive product. These include a standard proportional radio remote control, a planetary winch with a hydraulic/mechanical brake system and hexagonal tubing boom construction.

Stellar Industries is not only committed to making a quality product, it’s committed to helping you work more productively.

Features

+ Expand All
- Close All

7630 Specifications

7,500 lb. capacity with 30 ft. of reach

Crane Rating*	44,840 ft-lbs (6.2 tm)
Maximum Horizontal Reach	29' 8" (9.04 m) from CL of Crane
Maximum Vertical Lift	31' 6" (9.60 m) from Crane Base
Lifting Capacity**	7,500 lbs @ 5' 10" (3,400 kg @ 1.78 m)
	1,490 lbs @ 30' (675 kg @ 9.14 m)
Min. Rec. Chassis (GVWR)***	19,000

*Crane rating in Boost Mode. Normal crane rating is 60,000 ft-lbs (8.30 tm).

**Maximum capacities in Boost Mode.

***Guideline for Stellar® TMAX™ package with curbside rear crane. Consult with Stellar for other installations.

7621 Specifications

(7,500 lb. capacity with 21 ft. of reach)

Crane Rating*	44,840 ft-lbs (6.2 tm)
Maximum Horizontal Reach	21' 0" (6.40 m) from CL of Crane
Maximum Vertical Lift	22' 11" (7.01 m) from Crane Base
Lifting Capacity**	7,500 lbs @ 5' 10" (3,400 kg @ 1.78 m)
	2,135 lbs @ 21' (965 kg @ 6.40 m)
Min. Rec. Chassis (GVWR)***	19,000

*Crane rating in Boost Mode. Normal crane rating is 60,000 ft-lbs (8.30 tm).

**Maximum capacities in Boost Mode.

***Guideline for Stellar® TMAX™ package with curbside rear crane. Consult with Stellar for other installations.
